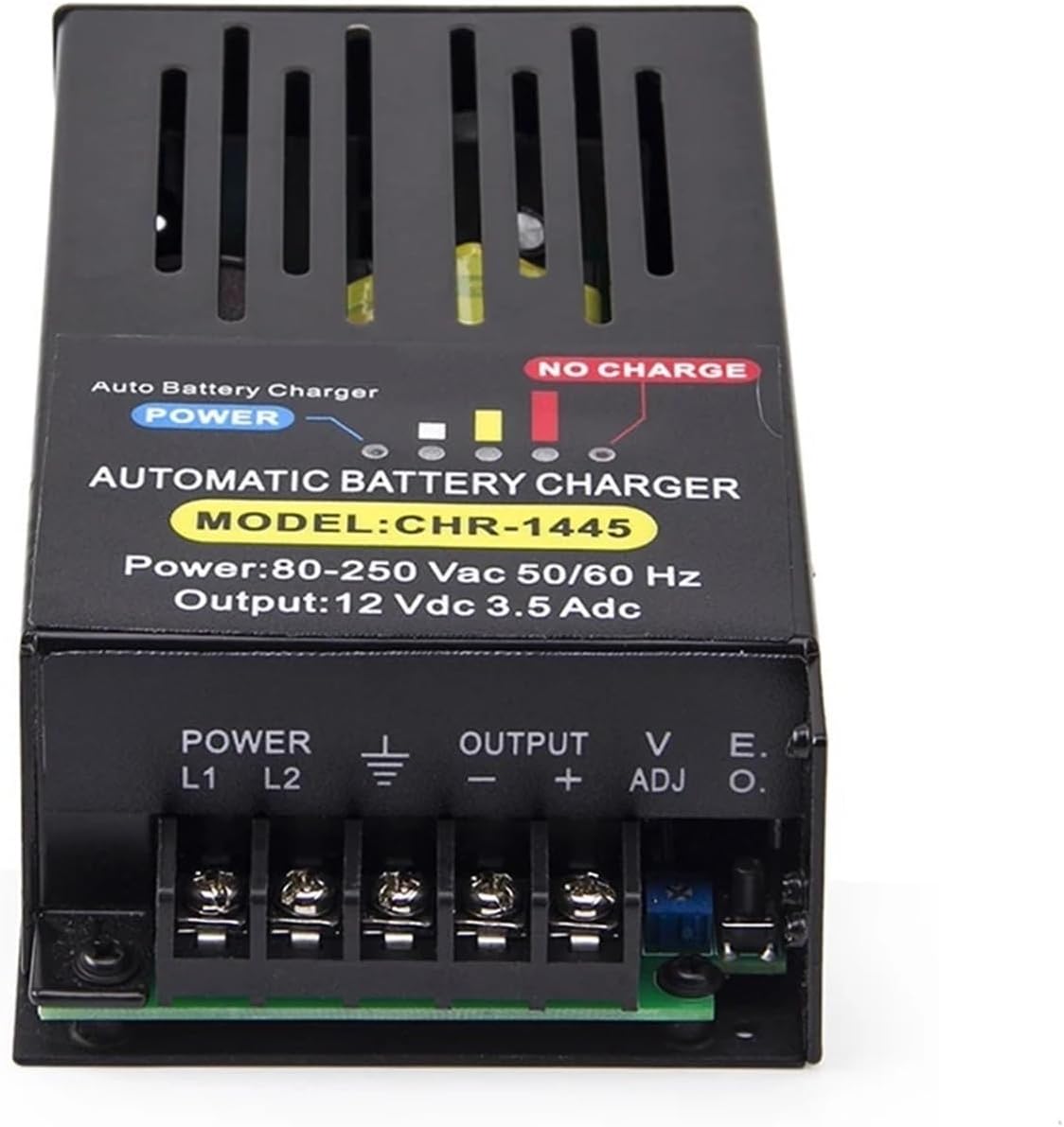

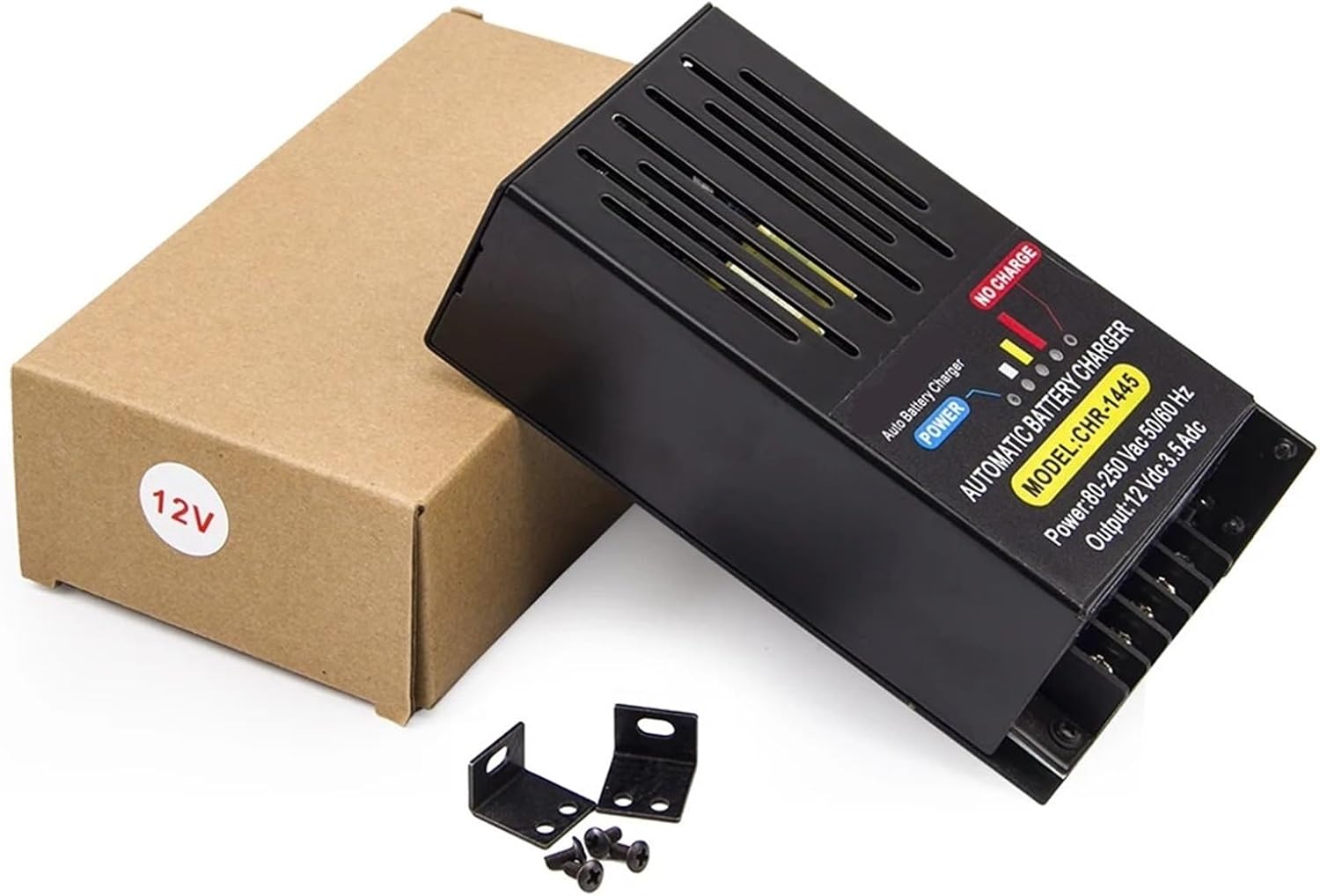

3.5A 12V 24V Generator Auto Intelligent Battery Charger Float Charging Adapter Regulator Module CHR-1445 CHR-2685(12V3.5A CHR-1445)

Battery Chargers1. Specifications AC input voltage:Voltage: 80~250VAC (110/220 VAC universal)Frequency :50/60HZAdjustable range of power output (: Do not change the adjustment value arbitrarily without our approval)CHR-1445 voltage 12-15 VDC, the value is 13.8V (battery fully charged voltage),CHR-2685 voltage 20-29 VDC, default is 27.6V (battery fully charged voltage)Charging method: silicon controlled rectification constant voltage current limit (floating)Protection function: constant voltage, current limiting, short circuit and other protection circuitsEfficiency: >85 % at full loadWorking temperature: -30~ 70 Storage temperature: -40~120 Relative humidity: max. 90 %Dimensions: 147mm(L)*82mm(W)*43mm(H)2. Installation and operation instructions2.1 Connect the AC power to L1 and L2, and pay attention that there is no voltage output before connecting the battery.2.2 Turn off (OFF) the AC power supply first, connect the + and - terminals of the battery to the + and - terminals of the charger output respectively, and then connectAC power.==========Model Number : 3.5ACHR-1445 : 12V/3.5ACHR-2685 : 24V/3.5A
